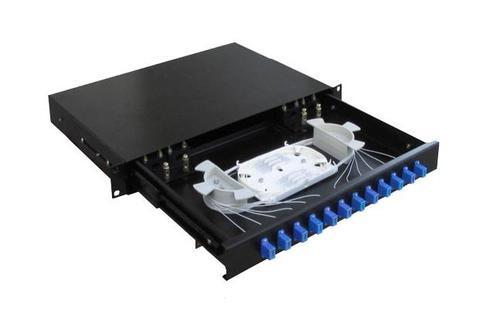

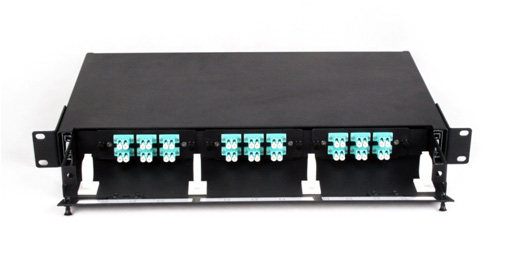

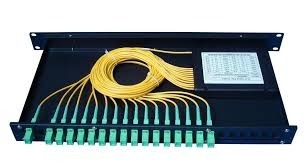

24 port configurable fiber LIU drawer type is a 1U rack mount unit for storing and terminating incoming fibre cable. Management rings within system to accommodate excess fibre cordage behind the adapters and maintain fibre bend radius. Available with 2 blank plates for configuring fiber system.
LIU is essentially a fiber distribution box wherein the fiber backbone cables and the equipment cables are terminated. The fiber spools provide minimum bending radius and the splice trays function as a splice cover for pigtail splicing.
Available in standard 19"
Cold rolled steel as raw material
Consist of Top cover and bottom panel
Easy to assemle and dissemble.
Three types of input holes
Cable entry through water proof cable clamp
